Cross Server Video Streaming - Using OBS, Streamyard or Zoom

  • Updated

Screenshot 2024-09-20 at 6.04.33 PM.png

This feature is only available as an add-on for Enterprise customers. Interested in learning more? Contact our Enterprise team today.

Enterprise customers can purchase per-space support for large-scale video streaming, which can support over 1000 viewers by casting from streaming software such as OBS or StreamYard.

Large-scale streaming is separate from Spatial’s regular screen share support, which supports only one Spatial instance at a time, and uses WebRTC for lower latency.

Scroll down to see how to set this up using OBS, Streamyard or Zoom in Spatial.

Features & Limitations

Streaming Features
  • Present across multiple Spatial instances to 1000+ users
  • Supports OBS and other streaming software to mix presenter video, presentations, and other elements such as logo overlays, polls, etc.
  • PiP and full-screen viewing mode on web
  • Supports RTMP, RTMP, and SRT



Streaming Limitations
  • One presenter at a time (however, you can stream a live Zoom session)
  • Higher latency (10-20 seconds)
    • approx. 8-12 seconds delay for users on web
    • approx. 20 seconds delay for users on mobile
  • Audience cannot respond using voice chat
  • Cannot stream directly from Spatial; third-party software is required (e.g. OBS, StreamYard, Zoom)



Set Up

1. Enable streaming

Contact your Enterprise plan representative to ensure streaming is enabled in your space. When it is enabled you will see a streaming icon in the upper right corner.

Screenshot 2024-09-20 at 2.56.09 PM.png

2. Click on the streaming icon to view Stream Settings

Screenshot 2024-09-20 at 2.57.44 PM.png

3. Set up your streaming client (see below)

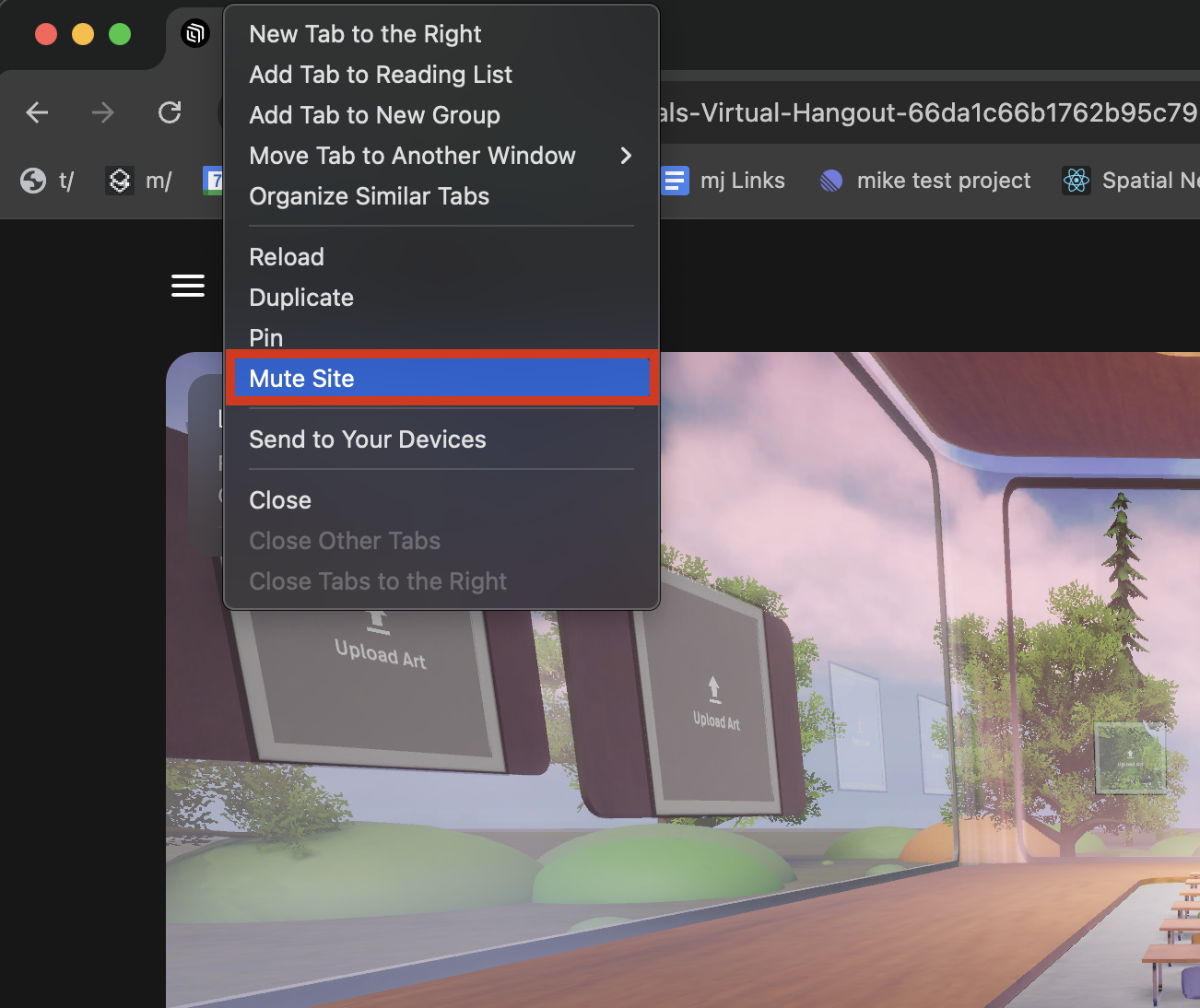

4. To prevent echo and feedback, mute all instances of Spatial during audio streaming. You can right click on a tab in Chrome to mute it. Don’t forget to unmute after your presentation!

Screenshot 2024-09-20 at 3.12.44 PM.png



Set up your streaming client

You can use any software that can publish a stream using RTMP, RTMPS, or SRT.

We recommend streaming from a computer with a stable high-speed internet connection.



OBS

  1. Set up using the OBS Quick Start Guide
  2. Inside your Spatial space, switch to “SRT” and copy the Server URL

Screenshot 2024-09-20 at 5.57.30 PM.png

3. In OBS > Settings > Stream, select “Custom…” service and then paste in the URL. You do not need a Stream Key.

Screenshot 2024-09-20 at 5.59.47 PM.png

4.In OBS, to improve latency:

  • Go to Settings > Output
  • Select Output Mode: Advanced
  • Select Rate control: CBR
  • Select Bitrate: 800Kbps
  • Select CPU usage present: veryfast
  • Select Tune: zerolatency

Screenshot 2024-09-20 at 6.00.44 PM.png

5. Start Streaming. You will see the stream appear in Spatial with a 10 to 20 second delay.

Screenshot 2024-09-20 at 6.02.50 PM.png

Screenshot 2024-09-20 at 6.04.33 PM.png

6. Keep in mind, users will see your stream with a delay

    1. approx. 8-12 seconds latency for users on web
    2. approx. 20 seconds latency for users on mobile



StreamYard

  1. Follow the instructions at https://support.streamyard.com/hc/en-us/articles/10770740689044-How-to-Create-a-Live-Stream to create a Stream
  2. For Destination, select Custom RTMP and fill in the values here

Screenshot 2024-09-25 at 6.04.45 PM.png

  1. Continue following the StreamYard instructions.
  2. Once you’ve set up your camera or other elements of your presentation, click Go Live in the StreamYard UI.
  3. You will see the stream appear in Spatial with a 10 to 20 second delay.
  4. Keep in mind, users will see your stream with a delay
    1. approx. 8-12 seconds latency for users on web
    2. approx. 20 seconds latency for users on mobile



Zoom

Zoom supports streaming a live call!

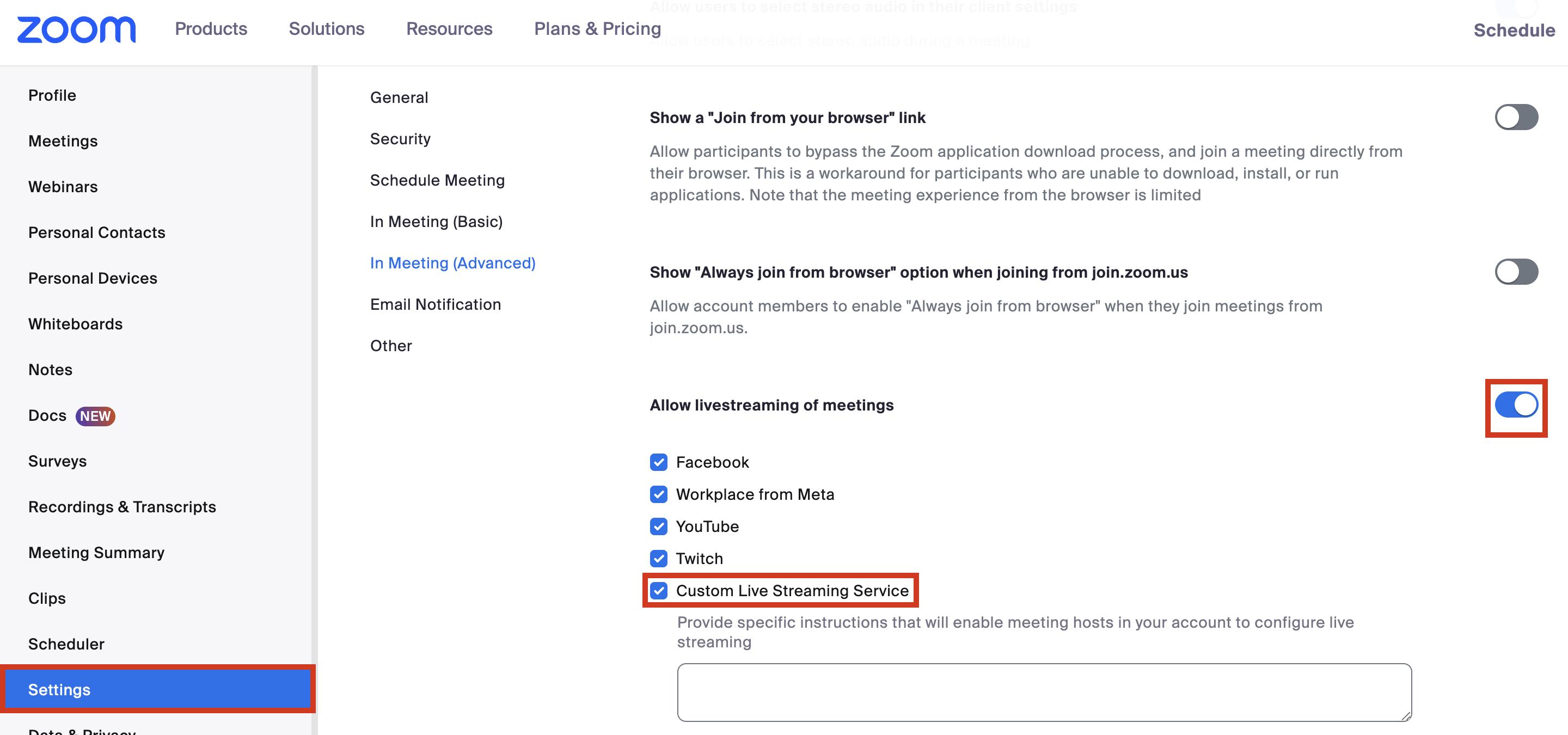

  1. Ensure that Live Streaming has been enabled on your account

Screenshot 2024-09-25 at 6.17.36 PM.png

  1. https://support.zoom.com/hc/en/article?id=zm_kb&sysparm_article=KB0059839
  2. Follow the Zoom instructions to set up Live Streaming support https://support.zoom.com/hc/en/article?id=zm_kb&sysparm_article=KB0060769
  3. In your Zoom client, go to Apps > Live Streaming > Add Channel > Custom

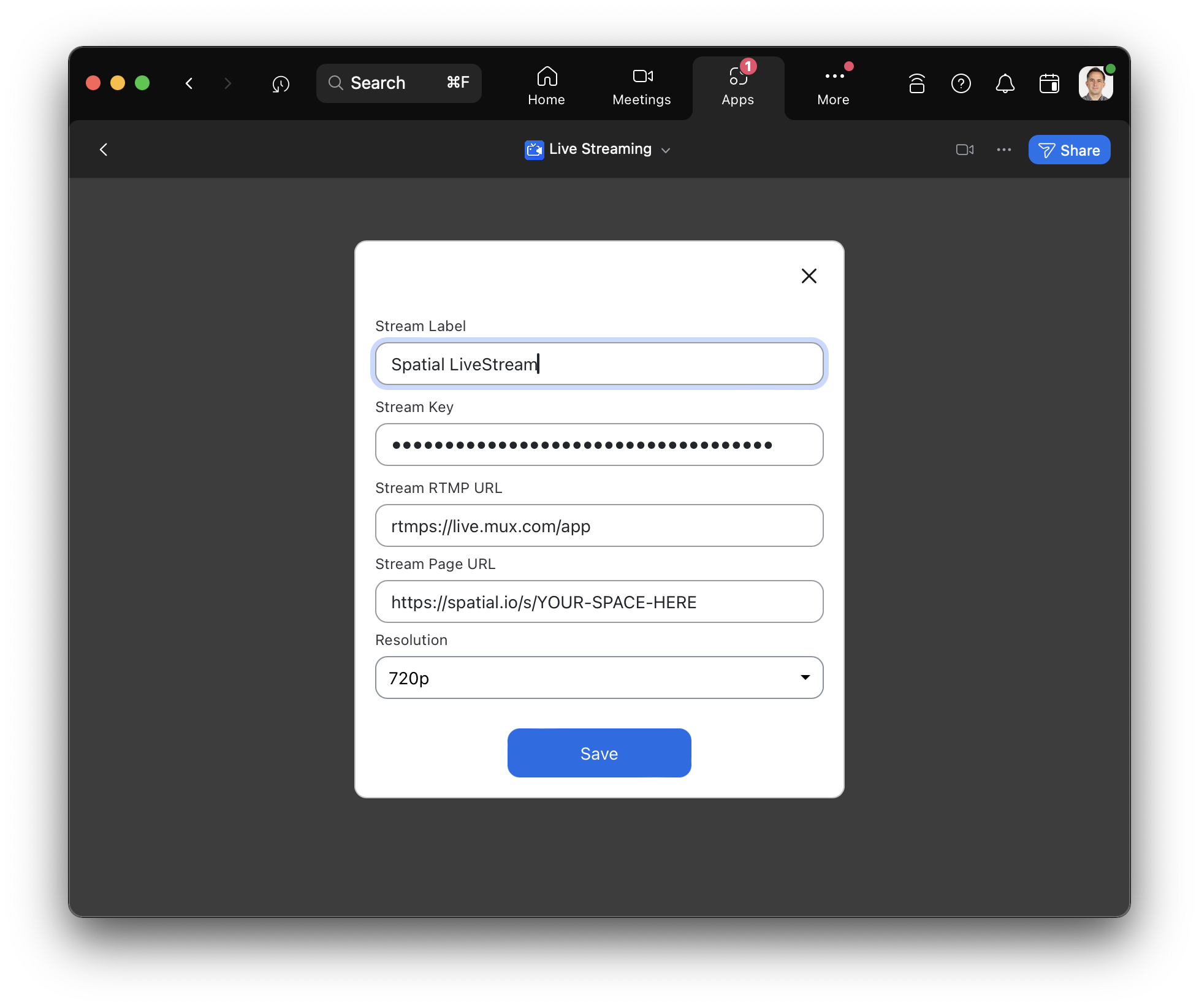

  4. Fill in the Spatial Stream Key, RTPM URL, and Page URL. We also recommend 720p resolution.

Screenshot 2024-09-25 at 7.14.36 PM.png

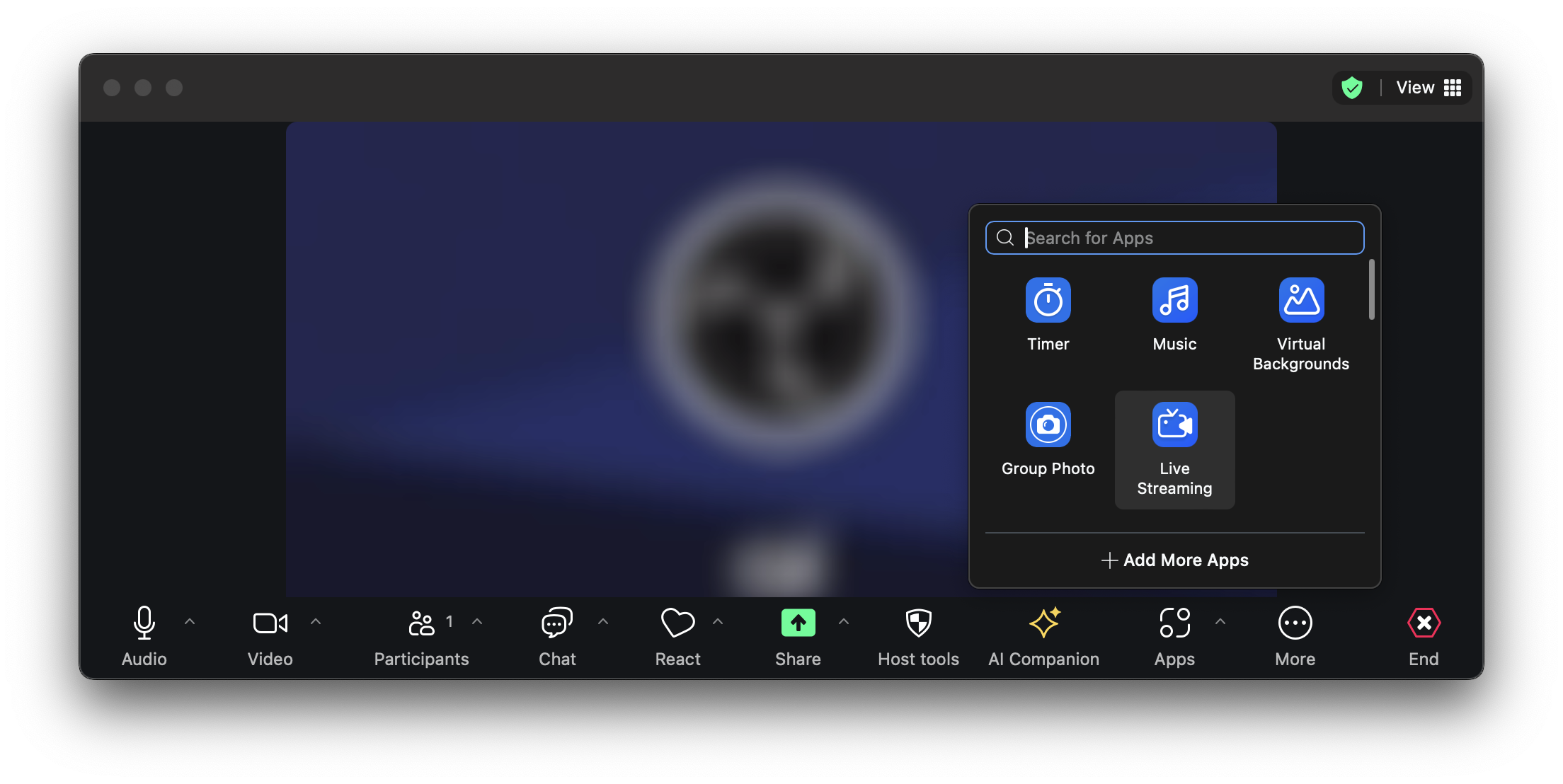

5. Start a Zoom Meeting. Inside the Zoom Meeting, click Apps > Live Streaming

Screenshot 2024-09-25 at 7.18.15 PM.png

6. Click Start Streaming

Screenshot 2024-09-25 at 7.18.28 PM.png

  1. You will see the stream appear in Spatial with a 10 to 20 second delay.
  2. Keep in mind, users will see your stream with a delay
    1. approx. 8-12 seconds latency for users on web
    2. approx. 20 seconds latency for users on mobile



Troubleshooting

  1. Ensure that you have copied the correct Server URL and Stream Key into your streaming app.
  2. Ensure your space has a projector surface.
    1. All built-in templates have a projector surface.
    2. Creator Toolkit spaces need to have a projector surface explicitly added.
